LangSmith

Integrate agentgateway with LangSmith for LLM debugging and monitoring

LangSmith is LangChain’s platform for debugging, testing, evaluating, and monitoring LLM applications.

Features

Trace logging - Detailed request/response logging
Debugging - Step-through debugging of LLM calls
Evaluation - Automated testing and evaluation
Monitoring - Production monitoring and alerting
Datasets - Build and manage evaluation datasets

Setup

Sign up at smith.langchain.com
Create a project and get your API key

Configuration

LangSmith accepts OpenTelemetry traces directly. Configure agentgateway to export traces directly to LangSmith.

You can configure tracing in the UI or in your configuration file.

Whether the UI can save depends on your storage mode. For more information, see Save changes from the UI.

Set the API key that the tracing policy sends in the x-api-key header. Export the variable in the environment that starts agentgateway. The UI checks environment variable references when you save, so the save fails if agentgateway does not have the variable.
```
export LANGSMITH_API_KEY="<your-langsmith-api-key>"
```

Create a configuration that routes LLM traffic, and start agentgateway.

cat <<'EOF' > config.yaml
# yaml-language-server: $schema=https://agentgateway.dev/schema/config
gateways:
  default:
    port: 3000
routes:
- backends:
  - ai:
      name: openai
      provider:
        openAI:
          model: gpt-4o-mini
  policies:
    backendAuth:
      key: "$OPENAI_API_KEY"
EOF

agentgateway -f config.yaml

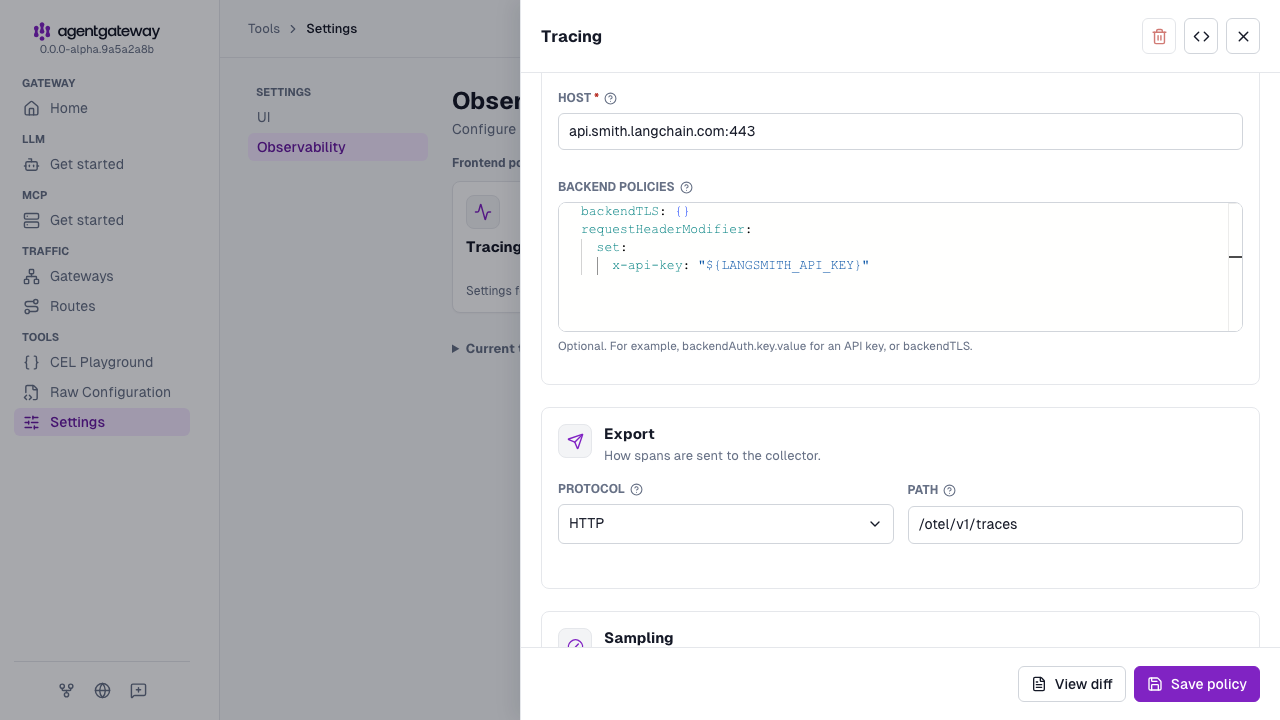

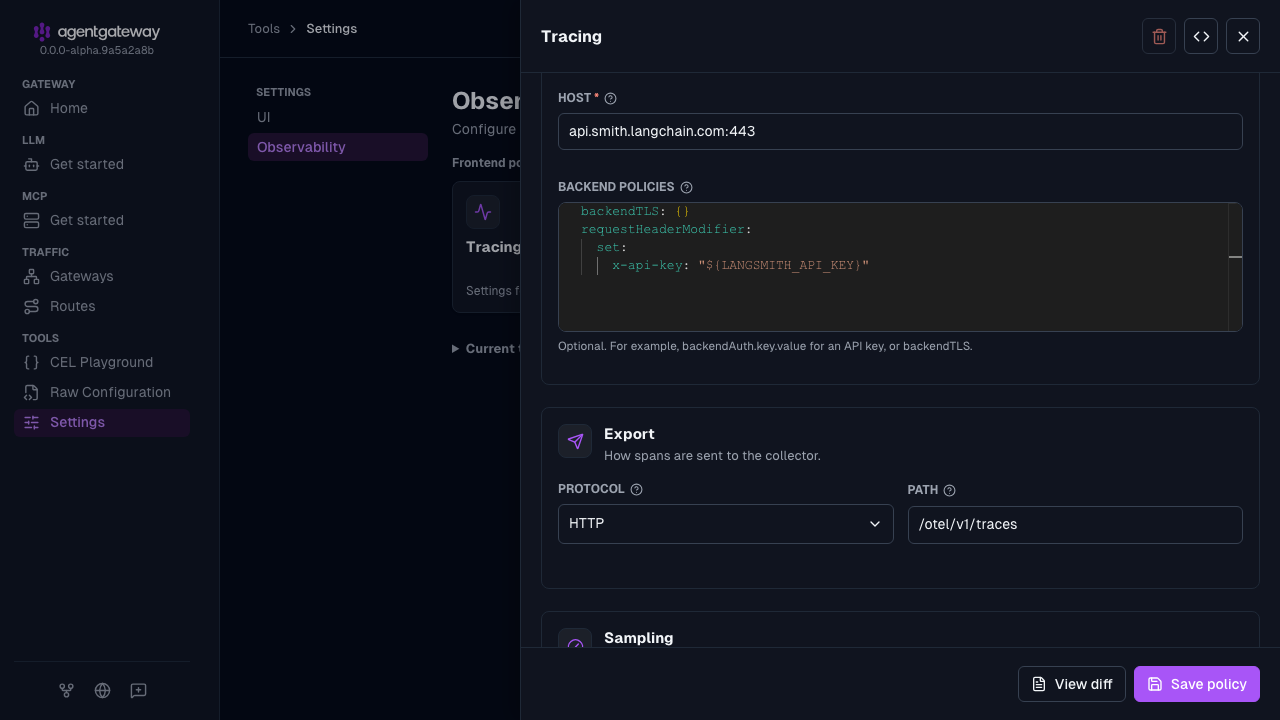

Open the Settings > Observability page, such as http://localhost:15000/ui/settings/observability, and click the Tracing card.
In the Tracing drawer, configure the following fields.
1. Host: Enter api.smith.langchain.com:443.
2. Backend policies: Enter the following YAML to enable TLS and set the API key header.
  backendTLS: {} requestHeaderModifier: set: x-api-key: "${LANGSMITH_API_KEY}"
3. Protocol: Select HTTP, and enter /otel/v1/traces for the Path.
4. Random sampling: Enter true.
Click Save policy.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
frontendPolicies:
  tracing:
    host: api.smith.langchain.com:443
    protocol: http
    path: /otel/v1/traces
    randomSampling: true
    policies:
      backendTLS: {}
      requestHeaderModifier:
        set:
          x-api-key: "${LANGSMITH_API_KEY}"
gateways:
  default:
    port: 3000
routes:
- backends:
  - ai:
      name: openai
      provider:
        openAI:
          model: gpt-4o-mini
  policies:
    backendAuth:
      key: "$OPENAI_API_KEY"

Authentication

Set the API key that the tracing policy sends in the x-api-key header. The policy selects OTLP over HTTP, enables backend TLS, and uses the full trace ingestion path from the LangSmith OpenTelemetry guide.

export LANGSMITH_API_KEY="<your-langsmith-api-key>"

Docker Compose example

Agentgateway exports traces directly to LangSmith without needing an OTel Collector:

version: '3'
services:
  agentgateway:
    image: cr.agentgateway.dev/agentgateway:latest
    ports:
      - "3000:3000"
    volumes:
      - ./config.yaml:/config.yaml:ro
    command: ["-f", "/config.yaml"]
    environment:
      - LANGSMITH_API_KEY=${LANGSMITH_API_KEY}
      - OPENAI_API_KEY=${OPENAI_API_KEY}

Learn more

Langfuse Braintrust
